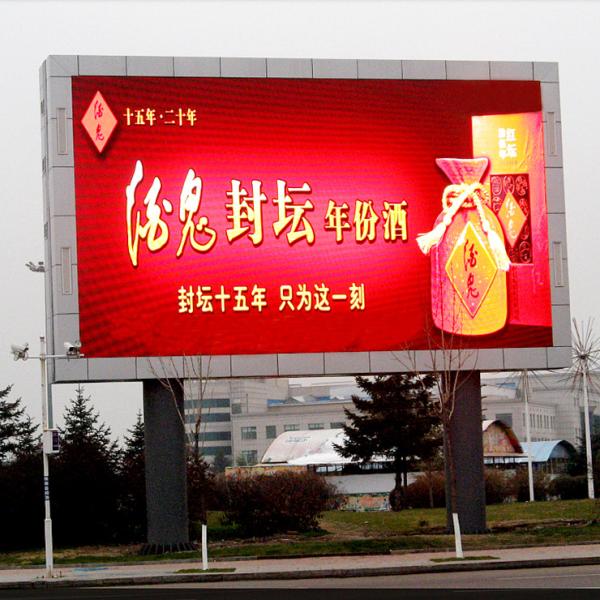

Full Color Outdoor P6 LED Screen for advertising with high
brightness, good uniformity, good stability and good waterproof
Product Features:
1. SMD led encapsulation technology confirm the wide view angle up
to 140 degree for horizontal and vertical, and good uniformity,less
than 0.1mm difference
2.High quality leds with black body with high contrast,high
brightness up to 6500nits
3. Good Waterproof IP65, can be used under heavy rain weather and
humid area
4. Stability Iron cabinets for fixed installation, with fast lock
and aviation plugs, conveninet to install and dismantle
5. High quality, meet the request of international standard of CE,
FCC,RoHs
6. Long life span >100000hours, and 3 year warranty
7, Vivid and exact picture, minimum noise, advanced test equipment,
support any PC operation system and play a variety of information
likevideo, word, flash, music, clock, graph etc.
8, High brightness and support brightness automatically adjustment.
9, Long lifespan, can reach more than 100, 000 hours, while the
power consumption is lower than one tenth of lamp or neon;
10, Easy & simple installation interface and user friendly software
to ensure the user friendly interface of the LED display system;
11, Rich outdoor full color LED display screen engineering
experience both in domestic and international market.
Outdoor Advertising LED Display Other Corresponding product
specifications :
P3mm outdoor Advertising led screen
P3.91mm outdoor Advertising led screen
P4.81mm outdoor Advertising led screen
P4mm outdoor Advertising led screen
P5mm outdoor Advertising led screen
P6mm outdoor Advertising led screen
P8mm outdoor Advertising led screen
P10mm outdoor Advertising led screen
P16mm outdoor Advertising led screen
P25mm outdoor Advertising led screen
P31.25mm outdoor Advertising led screen
| Description: | P6 mm Outdoor Front Servic LED Screen Wall |
| Contents it can play | Video + Pictures + Text |
| LED model | SMD - 3535 |
| Pixel Pitch | 6mm |
| Pixels Density | 27777Pixels/sq.m |
| Pixels Composition | 1R+1G+1B |
| LED Brand | kinglight |
Module Resolution
(Horizontal × Vertical) | 32 pixels × 32 pixels |
Screen Resolution
(Horizontal × Vertical) | 672 pixels ×320 pixels |
Module Dimension
(Horizontal × Vertical) | 192mm ×192 mm |
Screen Dimension
(Horizontal × Vertical) | H 1920X L 4032mm |
| Cabinet thickness | 150 mm |
| Brightness | ≤6000 nit |
| Brightness uniformity | Whole Screen Luminance Discrepancy <1% |
| Colors amount | 281 Trillion |
| Grey scale | 16bits levels, R/G/B adjustable respectively |
| Contrast | 1000:1 |
| Optimal viewing Angle | Horizontal>140, Vertical>120 |
| Best View distance | 3-100M |
| Scanning Mode | 1/8 |
| Frame changing frequency | 60HZ |
| Refresh frequency | >1920HZ, adjustable |
| Power Supply | CL slim item |
| Drive IC | ICN |
| Power supply input | 200V or 240V |
| Power supply output | Constant current, 5V, 40A |
| Max. power consumption | 200 w/sq.m. |
| Ave. power consumption | 80 w/sq.m. |
| LED display life-span | 50,000 - 100,000 hours |
| Malfunction dot rate | <0.02% |
| Operating ambient temperature | -20℃～+50℃ |
| Operating ambient humidity | 10%～90%RH |
| Grade of waterproofing | IP65 |
| Cabinet Material | iron |
| Cabinet Style | die casting with fast locks |
| Air Plug | NK for power, net cable for signal |
| Net Weight | 45 KG/sq.m. |
