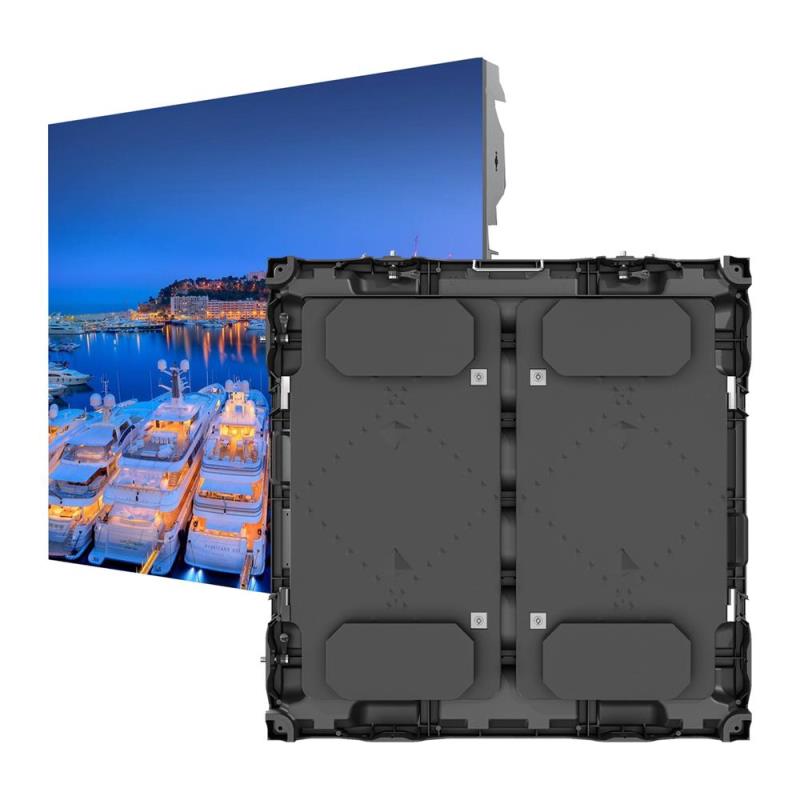

1G1R1B P4mm Indoor Advertising LED Display SMD2121 Full Color High Brightness

Product Categories

China Shenzhen HANJING Optoeletronics Co., Ltd.

Contact Now

Name: 1G1R1B P4mm Indoor Advertising LED Display SMD2121 Full Color High Brightness
Brand: HANJING
Price: 1 USD

Ask Lasest Price
Brand Name :	HANJING
Model Number :	P4mm
Certification :	CE/ROHS/FCC/ETL/TUV
Price :	Negotiation
Payment Terms :	35% T/T as prepayment,65% T/T as balance at factory,USD
Supply Ability :	600 sets per month
Delivery Time :	25-30 working days after received your payment

Add to Cart

Specifications:

Module	Technical Parameters
Pixel Pitch	4mm
LED Type	SMD2121
Module Size (mm)	320mm*160mm
Module Resolution	80dots*40dots
Module weight	0.23kg
Brightness	≤800 nit
Refresh Rate	≥1920 Hz
Driving Method	1/20scan
Grey level	16bits
Color Display	281 trillion
IP Grade	IP31
Power consumption (Max/Average)	600/200 W/sq.m
LifeSpan	100000 hour
Cabinet
Cabinet Size(WXH)	640mm*640mm
Cabinet resolution	128*128 Pixeles
Cabinet Material	Die-cast Aluminum
Cabinet weight(kg)	8kg
Pixel density	25000 Pixeles /m²
Installation	Flat Installation And Arc Installation
Control system	Full color asynchronous /synchronous
Data interconnection	Wifi / USB / HDMI
Software	PC software or Android App or IOS App
Application environment
Input AC power voltage	110V-240V
Working temperature	indoor:-20℃~50℃
Working humidity	humidity:10%-90%RH
Signal type(with video processor)	AV, S-Video, VGA, DVI, HDMI, SDI, DP
Control distance	HSYV: <100m; SMF: <10km

Conference room background wall P4mm indoor LED display case effect

1: LED Density: 25000 pixel/sqm;

2: For indoor fixed installation application;

3: Low power consumption, environmentally friendly;

4:High color saturation, high contrast for good image display.

5:True and natural color, perfect displaying effect;

6: high resolution

7: Seamless panels with excellent flatness;

8: Wide viewing angle: 140 degree both horizontal and vertical;

9: High contrast ratio which ensures vivid images;

10: System for indoor applications,The cabinet is lightweight,thin and fast to assemble and disassemble.
