    PH10.4mm Outdoor Transparent Glass LED Display High Visibility Even Under Direct Sunlight

    Ask Lasest Price
    Brand Name : HANJING
    Model Number : PH10.4mm outdoor transparent fixing display
    Certification : CE/ROHS/FCC/ETL/TUV
    Price : Negotiation
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
    Supply Ability : 1000 sets per month
    Delivery Time : 8-25 working days after received your payment
    • Product Details
    • Company Profile

    PH10.4mm Outdoor Transparent Glass LED Display High Visibility Even Under Direct Sunlight

    PH10.4mm/10.4mm COB outdoor high brightness transparent rental display

    Application: Indoor /outdoor Fixed Installation

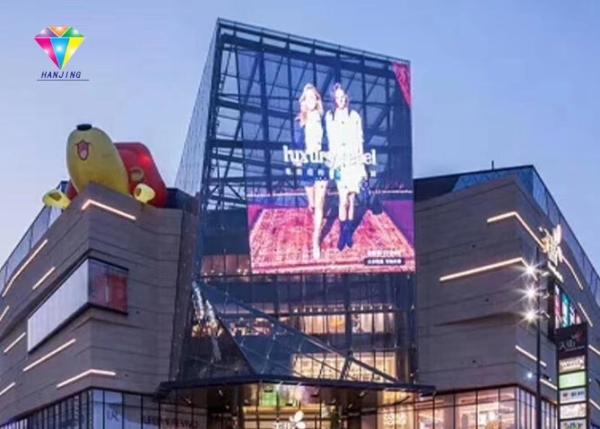

    Transparent glass LED display is a special product in LED display industry. It looks cool and attractive. Because it is transparent, it will not block the sight view behind the glass. Main applications sites are: shopping mall, 2S store, corporate building, etc.


    FHigh transparency. 50% to 75% transparent.

    Ultra light. Panel weight is only about 30% or less of the conventional steel LED panels.

    High brightness over 5000nit, high visibility even under direct sunlight.

    Wide viewing angle: horizontal 140° vertical 140°.

    Energy-saving. Average power consumption 400W/m2.

    Easy & fast installation by hanging the panel.

    Smart control. Synchronous or Asynchronous.

    Reliable quality. adopts high quality materials, to ensure stable performance and long lifetime.


    Transparent Glass LED Display Other Corresponding product specifications:

    PH3.91mm Transparent Glass LED Display

    PH5mm Transparent Glass LED Display

    PH6.25mm Transparent Glass LED Display

    PH7.81mm Transparent Glass LED Display

    PH10.4mm Transparent Glass LED Display

    PH15.64mm Transparent Glass LED Display

    PH20mm Transparent Glass LED Display

    PH25mm Transparent Glass LED Display

    PH31.25mm Transparent Glass LED Display

    PH40mm Transparent Glass LED Display


    PH10.4mm*10.4mmCOB outdoor high brightness transparent rental display Product parameters

    LED pixelPixel pitchP10.42(W) x 10.42(H)
    Pixel config.COB 3 in 1
    Color config.1R1G1B
    Pixel diameterØ3.1mm
    The vertical pressure on the pixel63kg
    The horizontal thrust of the pixel31.5kg
    Pixel surface hardnessShore hardness D84
    LED transparent display panelPixel density per square meter9216/㎡
    Panel size250(W) x 62.6(H) x 9.7(D)mm
    Panel pixel resolution24(W) x 6(H)
    Total panel pixels144
    scanning method1/2
    Panel peak power consumption12W
    Average panel power consumption4.8W
    Panel colorUsually black / white is required
    Panel weight0.04kg
    CabinetCabinet size500(W) x 1000(H) x 70(D)mm
    Number of cabinets per square meter2
    Cabinet pixel resolution48(W) x 96(H)
    Total cabinet pixel4608
    Cabinet peak power consumption384W
    Cabinet structure materialAluminum alloy
    Cabinet weight6.5kg
    Vertical tensile strength of the cabinet500kg/f
    DisplayPixel failure rate<5/100000 pixels
    Transparency65%
    Brightness5000 nit
    Contrast2500:1 for black color panel
    Gray scale16384
    Refresh frequency≧1920
    Frame frequency50&60
    Viewing angleHor >175°Ver >175°
    Input powerAC90-264V50-60Hz
    Maximum power consumption768W/㎡
    Average power consumption307W/㎡
    Working environment-25°C-80°C10%-90%RH
    Protection gradePanel IP65Structure IP65
    Anti-screen front light source interference capability100%
    Service life≧50000h
