P10mm outdoor full-color DIP LED display is mainly composed of red,
green and blue DIP346 lamp beads. There are 10,000 pixels in a
square meter, and the distance between each pixel is 10mm. The
scanning mode is 4-scan, and the power consumption per square meter
is about 300 watts per square meter. The novel mask setting makes
the color mixing more even and the high-density pixel makes the
picture quality clearer and the view Angle wider.
P10mm outdoor full-color DIP LED display features:
P10LED outdoor display nonlinear correction technology, image
effect fine and clear; The animation effect is vivid and diverse;
Video effect smooth, realistic, no highlights, no screen, no dead
point, high brightness, low light decline long life, good quality
Outdoor P10LED display adopts automatic glue pouring machine, which
improves module leveling; And the use of high - quality imported
glue for irrigation, improve waterproof performance
For the format, can be arbitrarily arranged by the user display
mode; Can display text, pictures, charts, images, animation, video
information; And there is no limit to the amount of information
displayed
Outdoor P10 full-color display screen USES high-quality
light-emitting components as the core material of the display
screen and USES its own patented circuit board design,
fundamentally ensuring the service life of the product
P10 outdoor LED display can support synchronous control card and
asynchronous control card; Even in the case of control computer
failure, still can normal display playback
P10 outdoor display screen adopts standardized configuration, the
same specification equipment and parts in the system can be freely
interchangeable

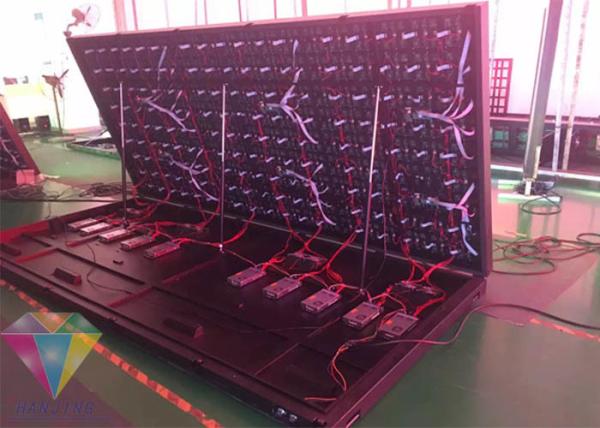

Outdoor P10 display box adopts ultra-thin design, beautiful
appearance, easy to install, can be made into any shape according
to the needs of users, assembly and disassembly, easy maintenance
P10 outdoor full-color display materials to finished products,
research and development to production of the whole process of
controllability, become a guarantee of product quality and
reliability
P10 outdoor LED full color display before shipment of the box body
water treatment, the front and back of the box body completely
waterproof; High waterproof level for normal operation in outdoor
all-weather environment
Advantages of P10 outdoor full-color LED display:
Unit 1. Die spellers seams: unit spell joint plate gap size is
consistent, and 1 ㎜ or less
2.P10LED outdoor full-color display screen system works stably and
reliably with strong anti-interference ability. It works
continuously for more than 72 hours
3. Various shapes: it can be made into rectangle, square, arc,
circle and other customized design shapes
4. Standardization of outdoor P10LED full-color display box design
makes the same box size suitable for different pixel display
requirements, making LED advertising screen installation more
convenient
5. Due to the particularity of LED display industry, it requires
changing the working current of LED lamp by adjusting the power
supply voltage under certain circumstances, so as to change the
brightness of LED. In terms of the design of energy saving plan,
the power supply is 4.2-5v, with small power consumption and energy
saving of 20
6. Outdoor P10 full-color LED display has the high-performance
waterproof and dustproof ability of IP65 or above
7. Installation of steel structure frame: P10 outdoor LED
full-color display is light steel frame, and chemical riveted steel
plate is used as supporting structure in the corresponding beam and
column parts, and the steel frame of display screen is connected
with riveted steel plate
P10 outdoor full-color LED display applicable scope:
Outdoor P10LED full-color display screen is widely used in
stadiums, squares, transportation, shopping malls, stations,
hotels, guesthouses, airports, docks, schools and other outdoor
occasions
Other Corresponding product specifications:
P3mm outdoor advertising Front Service LED Display
P4mm outdoor advertising Front Service LED Display
P5mm outdoor advertising Front Service LED Display
P6mm outdoor advertising Front Service LED Display
P8mm outdoor advertising Front Service LED Display
P10mm outdoor advertising Front Service LED Display
P16mm outdoor advertising Front Service DIP LED Display
P25mm outdoor advertising Front Service DIP LED Display
P31.25mm outdoor advertising Front Service DIP LED Display
Specifications:
| Module | Technical Parameters |
| Pixel Pitch | 10mm |
| LED Type | DIP346 |
| Module Size (mm) | 160mm × 160mm |
| Module Resolution | 16dots × 16dots |
| Module weight | 0.6kg |
| Brightness | ≤7500 nit |
| Refresh Rate | ≥1920 Hz |
| Driving Method | 1/4scan |
| Grey level | 16bits |
| Color Display | 281 trillion |
| IP Grade | IP65 |
| Power consumption (Max/Average) | 600/200 W/sq.m |
| LifeSpan | 100000 hour |
| Cabinet |
| Cabinet Size(WXH) | Can be customized |
| Cabinet resolution | Pixeles |
| Cabinet Material | Iron Box Technology |
| Cabinet weight(kg) | 49kg/㎡ |
| Pixel density | 10000 Pixeles /m² |
| Installation | Crane Girder Hoisting And Fixed Installation |
| Control system | Full color asynchronous /synchronous |
| Data interconnection | Wifi / USB / HDMI |
| Software | PC software or Android App or IOS App |
| Application environment |
| Input AC power voltage | 110V-240V |
| Working temperature | oudoor:-20℃~60℃ |
| Working humidity | humidity:10%-90%RH |
| Signal type(with video processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP |
| Control distance | HSYV: <100m; SMF: <10km
|
