192 Dots192 Dots Indoor Full Color Led Display Screen 576mm576mm SMD2121

Product Categories

China Shenzhen HANJING Optoeletronics Co., Ltd.

Contact Now

Name: 192 Dots192 Dots Indoor Full Color Led Display Screen 576mm576mm SMD2121
Brand: HANJING
Price: 1 USD

Ask Lasest Price
Brand Name :	HANJING
Model Number :	P3mm LED Display
Certification :	CE/ROHS/FCC/ETL/TUV
Price :	Negotiation
Payment Terms :	35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
Supply Ability :	1000 sets per month
Delivery Time :	8-25 working days after received your payment

Add to Cart

P3 indoor LED display :

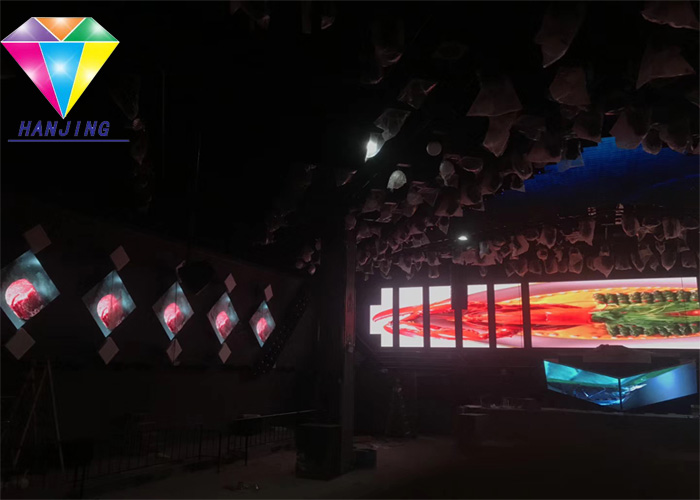

Bar installed P3mm LED Display case effect

1: For indoor fixed installation application;

2: True and natural color, perfect displaying effect;

3: High brightness & high resolution;

4: Seamless panels with excellent flatness;

5: Wide viewing angle: 140 degree both horizontal and vertical;

6: High contrast ratio which ensures vivid images;

7: Low power consumption, environmentally friendly;

8: High contrast ratio which ensures vivid images;

9: Wide viewing angle: 140 degree both horizontal and vertical;

10: High color saturation, high contrast for good image display.

Specifications:

Module	Technical Parameters
Pixel Pitch	3mm
LED Type	SMD2121
Module Size (mm)	192mm*192mm
Module Resolution	64dots*64dots
Module weight	0.24kg
Brightness	≤800 nit
Refresh Rate	≥1920 Hz
Driving Method	1/32 scan
Grey level	16bits
Color Display	281 trillion
IP Grade	IP31
Power consumption (Max/Average)	600/200 W/sq.m
LifeSpan	100000 hour
Cabinet
Cabinet Size(WXH)	576mm*576mm
Cabinet resolution	192*192 Pixeles
Cabinet Material	Die-cast Aluminum
Cabinet weight(kg)	8.9kg
Pixel density	111111 Pixeles /m²
Installation	Flat Installation And Arc Installation
Control system	Full color asynchronous /synchronous
Data interconnection	Wifi / USB / HDMI
Software	PC software or Android App or IOS App
Application environment
Input AC power voltage	110V-240V
Working temperature	indoor:-20℃~50℃
Working humidity	humidity:10%-90%RH
Signal type(with video processor)	AV, S-Video, VGA, DVI, HDMI, SDI, DP
Control distance	HSYV: <100m; SMF: <10km
