P2.5 indoor LED display :
LED display use state-of-the-art 3 in 1 SMD. The display can show
colorful static and dynamic images vividly. With the advantages of
high resolution, high brightness, low power consumption, they are
perfect for indoor use to show high definition DVD, VCD, TV
programs and so on.
1, LED Density: 160,000 pixel/sqm;
2, For indoor fixed installation application;
3, True and natural color, perfect displaying effect;
4, High brightness & high resolution;
5, Seamless panels with excellent flatness;
6,Wide viewing angle: 140 degree both horizontal and vertical;
7, High contrast ratio which ensures vivid images;
8,Low power consumption, environmentally friendly;
9, High contrast ratio which ensures vivid images;
10,Wide viewing angle: 140 degree both horizontal and vertical;
11,High color saturation, high contrast for good image display.
12,System for indoor applications,The cabinet is lightweight,thin
and fast to assemble and disassemble.

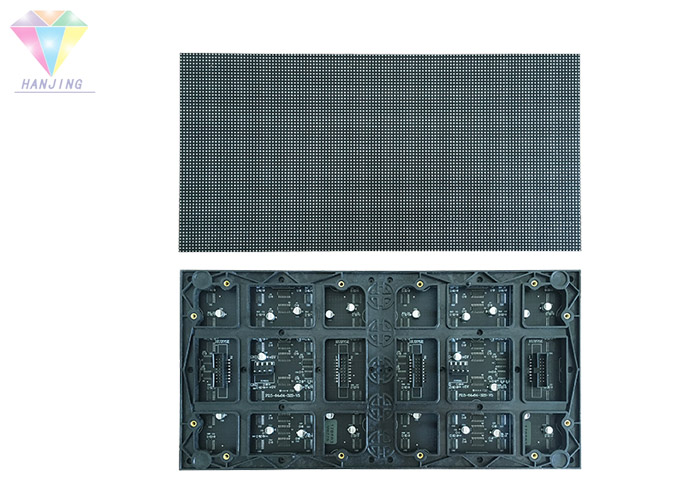

LED display unit module
Case assembly back style display
1:Double backup power supply
2:The module can maintian not only in front, easy to solve the
fault. Modular design, quickly to replace the power receiving card
On the back of housing
Excellent heat dissipation, cable-free design, use gold-plated
connectors, product is very.safe and reliable
Specifications:
Module | Technical Parameters |
Pixel Pitch | 2.5mm |
LED Type | SMD2121 |
Module Size (mm) | 320mm*160mm |
Module Resolution | 128dots*64dots |
Module weight | 0.48kg |
Brightness | ≤800 nit |
Refresh Rate | ≥1920 Hz |
Driving Method | 1/32 scan |
Grey level | 16bits |
Color Display | 281 trillion |
IP Grade | IP31 |
Power consumption (Max/Average) | 600/200 W/sq.m |
LifeSpan | 100000 hour |
Cabinet |
Cabinet Size(WXH) | 640mm*480mm |
Cabinet resolution | 256*192 Pixeles |
Cabinet Material | Die-cast Aluminum |
Cabinet weight(kg) | 10.8kg |
Pixel density | 160000 Pixeles /m² |
Installation | Flat Installation And Arc Installation |
Control system | Full color asynchronous /synchronous |
Data interconnection | Wifi / USB / HDMI |
Software | PC software or Android App or IOS App |
Application environment |
Input AC power voltage | 110V-240V |
Working temperature | indoor:-20℃~50℃ |
Working humidity | humidity:10%-90%RH |
Signal type(with video processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP |
Control distance | HSYV: <100m; SMF: <10km |
