LED display use state-of-the-art 3 in 1 SMD. The display can show
colorful static and dynamic images vividly. With the advantages of
high resolution, high brightness, low power consumption, they are
perfect for indoor use to show high definition DVD, VCD, TV
programs and so on.
Conference room background wall P2mm indoor LED display case effect
1: LED Density: 25000 pixel/sqm;
2: For indoor fixed installation application;
3: Low power consumption, environmentally friendly;
4:High color saturation, high contrast for good image display.
5:True and natural color, perfect displaying effect;
6: high resolution
7: Seamless panels with excellent flatness;
8: Wide viewing angle: 140 degree both horizontal and vertical;
9: High contrast ratio which ensures vivid images;
10: System for indoor applications,The cabinet is lightweight,thin
and fast to assemble and disassemble.
Modules can be absorbed from the front by the screen maintenance
tool
Specifications:
| Module | Technical Parameters |
| Pixel Pitch | 3.91mm |
| LED Type | SMD2121 |
| Module Size (mm) | 250mm*250mm |
| Module Resolution | 64dots*64dots |
| Module weight | 0.23kg |
| Brightness | ≤800 nit |
| Refresh Rate | ≥1920 Hz |
| Driving Method | 1/32 scan |
| Grey level | 16bits |
| Color Display | 281 trillion |
| IP Grade | IP31 |
| Power consumption (Max/Average) | 600/200 W/sq.m |
| LifeSpan | 100000 hour |
| Cabinet |
| Cabinet Size(WXH) | 500mm*5500mm |
| Cabinet resolution | 128*128 Pixeles |
| Cabinet Material | Die-cast Aluminum |
| Cabinet weight(kg) | 8kg |
| Pixel density | 25000 Pixeles /m² |
| Installation | Flat Installation And Arc Installation |
| Control system | Full color asynchronous /synchronous |
| Data interconnection | Wifi / USB / HDMI |
| Software | PC software or Android App or IOS App |
| Application environment |
| Input AC power voltage | 110V-240V |
| Working temperature | indoor:-20℃~50℃ |
| Working humidity | humidity:10%-90%RH |
| Signal type(with video processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP |
| Control distance | HSYV: <100m; SMF: <10km |

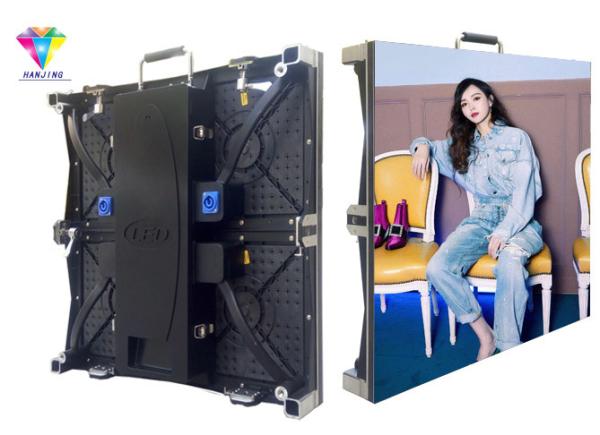

500mm*500mm die-cast aluminum box
P3.91mm indoor LED Display 500mm*500mm die-cast aluminum box fixed
installation use case in the conference hall
