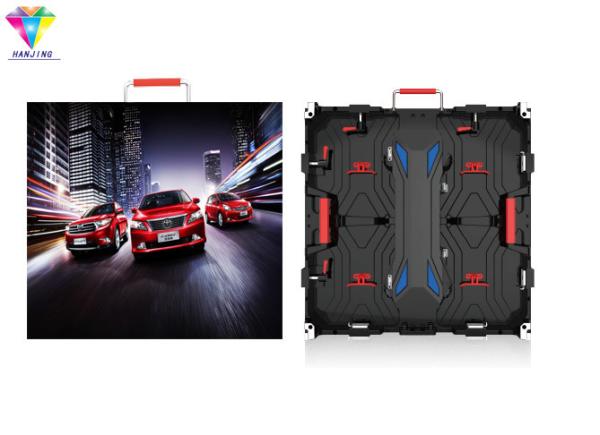

P3.91mm oudoor LED rental die-cast aluminum series introduction:
As a custom die-cast aluminum design, LED rental display is light,
thin and quick to install as its most important feature. LED
electronic screen box is light and thin, can be quickly installed,
removed and transported, suitable for large area rental and fixed
installation applications. The LED electronic screen is processed
by synchronous control system, which can accept all kinds of video
input signals such as DVI, VGA, HDMI, s-video, composite, YUV,
etc., and can play video, pictures and texts and other programs at
will, playing all kinds of information in a real-time, synchronous
and clear way of information transmission. Vivid color, strong
adaptability. Shenzhen tuosheng LED display leasing has the
following advantages:
1. Super light -- the weight is only 6kg, which can be carried by a
single person, making it extremely easy to install;
2. Ultra-thin -- the box body is made of die-cast aluminum,
featuring high strength, strong toughness, high precision and not
easy to be deformed, saving labor for transportation;
3. High precision -- the size is accurate to 0.1mm for
electromechanical machining;
4, compatibility -- new structure design, meet lifting, stacking
requirements, indoor and outdoor requirements;
5. Rapidness -- the upper, lower and left and right connections of
the box body adopt fast locking mechanism, which can complete the
installation of a box body in 10 seconds with high installation
accuracy;
6, reliable -- high strength and hardness, good heat dissipation
effect;
7. Cost -- light weight and low installation cost; Box low power
consumption, save operating costs, reduce labor costs.
Advantages of die-cast aluminum:
Ultra hd display effect, high precision seamless splicing, seam
accuracy to 0.1mm
Ultra high refresh frequency, can support the video camera
shooting, ensure the picture quality clear
New structure design, meet the requirements of lifting, folding,
flexible, with a strong visual impact, to leave a deep impression
Simple installation, simple use, easy maintenance
Fast and convenient assembly and disassembly system, saving loading
and unloading time
outdoor Indoor Rental LED Display Other Corresponding product
specifications:
P2mm outdoor Indoor Rental LED Display
P2.5mm outdoor Indoor Rental LED Display
P2.604mm outdoor Indoor Rental LED Display
P2.976mm outdoor Indoor Rental LED Display
P3.91mm outdoor Indoor Rental LED Display
P4.81mm outdoor Indoor Rental LED Display
P5.95mm outdoor Indoor Rental LED Display
Specifications:
| Module | Technical Parameters |
| Pixel Pitch | 3.91mm |
| LED Type | SMD2121 |
| Module Size (mm) | 250mm*250mm |
| Module Resolution | 64dots*64dots |
| Module weight | 0.55kg |
| Brightness | ≤1000 nit |
| Refresh Rate | ≥1920 Hz |
| Driving Method | 1/16 scan |
| Grey level | 16bits |
| Color Display | 281 trillion |
| IP Grade | IP31 |
| Power consumption (Max/Average) | 600/200 W/sq.m |
| LifeSpan | 100000 hour |
|
| Cabinet |
| Cabinet Size(WXH) | 500mm*1000mm |
| Cabinet resolution | 128*256 Pixeles |
| Cabinet Material | Die-cast Aluminum |
| Cabinet weight(kg) | 11kg |
| Pixel density | 65536 Pixeles /m² |
| Installation | Flat Installation And Arc Installation |
| Control system | Full color asynchronous /synchronous |
| Data interconnection | Wifi / USB / HDMI |
| Software | PC software or Android App or IOS App |
|
| Application environment |
| Input AC power voltage | 110V-240V |
| Working temperature | indoor:-20℃~50℃ |
| Working humidity | humidity:10%-90%RH |
| Signal type(with video processor) | AV, S-Video, VGA, DVI, HDMI, SDI, DP |
| Control distance | HSYV: <100m; SMF: <10km |
