    P3.91mm/7.81mm Transparent Glass Led Display 1200nit Brightness For Shop Window

    Ask Lasest Price
    Brand Name : HANJING
    Model Number : P3.91mm/7.81mm mall indoor transparent LED display
    Certification : CE/ROHS/FCC/ETL/TUV
    Price : Negotiation
    Payment Terms : 35% T/T as prepayment,65% T/T as balance at factory, Western Union, MoneyGram
    Supply Ability : 1000 sets per month
    Delivery Time : 8-25 working days after received your payment
    • Product Details
    • Company Profile

    P3.91mm/7.81mm Transparent Glass Led Display 1200nit Brightness For Shop Window

    P3.91mm/7.81mm mall indoor transparent LED display
    Application: Indoor Fixed Installation

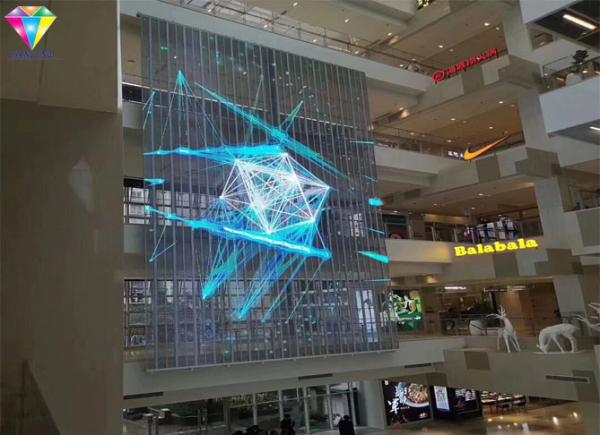

    Transparent glass LED display is a special product in LED display industry. It looks cool and attractive. Because it is transparent, it will not block the sight view behind the glass. Main applications sites are: shopping mall, 4S store, corporate building, etc.
    FHigh transparency. 50% to 75% transparent.
    Ultra light. Panel weight is only about 30% or less of the conventional steel LED panels.
    High brightness over 1200nit, high visibility even under direct sunlight.
    Wide viewing angle: horizontal 140° vertical 140°.
    Energy-saving. Average power consumption 400W/m2.
    Easy & fast installation by hanging the panel.
    Smart control. Synchronous or Asynchronous.
    Reliable quality. adopts high quality materials, to ensure stable performance and long lifetime.
    Transparent Glass LED Display Other Corresponding product specifications:
    PH3.91mm Transparent Glass LED Display
    PH5mm Transparent Glass LED Display
    PH6.25mm Transparent Glass LED Display
    PH7.81mm Transparent Glass LED Display
    PH10.4mm Transparent Glass LED Display
    PH15.64mm Transparent Glass LED Display
    PH20mm Transparent Glass LED Display
    PH25mm Transparent Glass LED Display
    PH31.25mm Transparent Glass LED Display
    PH40mm Transparent Glass LED Display
    PH3.91x7.81mmCOB outdoor high brightness transparent rental display Product parameters

    LED pA11:P49Pixel pitchP3.91(W) x 7.81(H)
    Pixel config.3 in 1SMD
    Color config.1R1G1B
    Pixel diameterØ2.3mm
    The vertical pressure on the pixel35kg
    The horizontal thrust of the pixel17.5kg
    Pixel surface hardnessShore hardness D84
    LED transparent display panelPixel density per square meter32768/㎡
    Panel size250(W) x 62.6(H) x 9.7(D)mm
    Panel pixel resolution64(W) x 8(H)
    Total panel pixels512
    scanning method1/8
    Panel peak power consumption11.5W
    Average panel power consumption4.6W
    Panel colorUsually black / white is required
    Panel weight0.03kg
    CabinetCabinet size500(W) x 1000(H) x 70(D)mm
    Number of cabinets per square meter2
    Cabinet pixel resolution128(W) x 128(H)
    Total cabinet pixel16384
    Cabinet peak power consumption368W
    Cabinet structure materialAluminum alloy
    Cabinet weight5.5kg
    Vertical tensile strength of the cabinet500kg/f
    DisplayPixel failure rate<5/100000 pixels
    Transparency55%
    Brightness1200 nit
    Contrast2500:1 for black color panel
    Gray scale16384
    Refresh frequency≧1920
    Frame frequency50&60
    Viewing angleHor >175°Ver >175°
    Input powerAC90-264V50-60Hz
    Maximum power consumption736W/㎡
    Average power consumption295W/㎡
    Working environment-25°C-80°C10%-90%RH
    Protection gradeIP23
    Anti-screen front light source interference capability100%
    Service life≧50000h
